Hardened and Ground Pins are precisely engineered components designed for applications demanding high strength, wear resistance, and dimensional accuracy. These pins are manufactured using high-quality materials such as EN8 (Medium Carbon Steel), EN31 (High Carbon Alloy Steel), and SS (Stainless Steel) to deliver exceptional hardness and durability. The hardening process ensures a tough core with a hard surface, providing superior resistance to abrasion and impact. Precision grinding further enhances dimensional accuracy and surface finish, making these pins ideal for applications involving heavy loads and repetitive movements. The use of advanced machining techniques ensures consistent quality and optimal fit in critical industrial assemblies.
Guide Pins ( Germany )

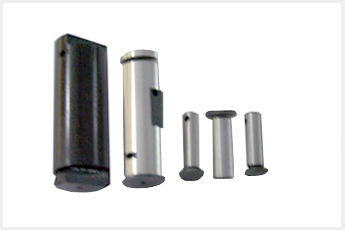

Hardened and Ground Pins

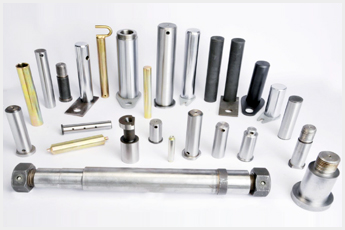

Hardened and Ground Pins
Hardened and Ground Pins

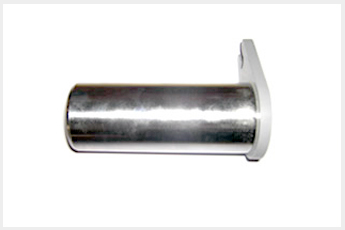

Ground Pins

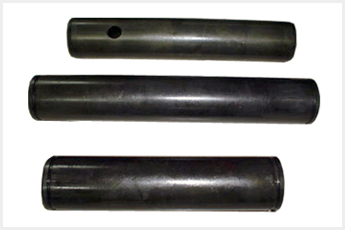

Big Shaft for Excavator
Specification | Description |
Max. Outer Dia Ø | 200 mm |
Min. Outer Dia Ø | 5 mm |
Max Length | 1500 mm |
Heat Treatment | Through Hardening / Case Hardening / Induction Hardening |
Hardness | As per customers requirement |
Case Depth | 0.5 to 2.5 mm |
Raw Material ( Preferred ) |
EN8D, EN19, EN31, 16MnCR5, 20MnCr5 or as per customers requirement |
Welding | End Plate Welding, Co2 / Argon |
