We are Manufacturer, Supplier, Exporter, Dealer, Services provider of Hardened and Ground Bushes, Hardened Bushes, Soft Machined Bushes, Molykote Coating Bushes, Precision Machined Components, and our setup is situated at Pune, Maharashtra, India.

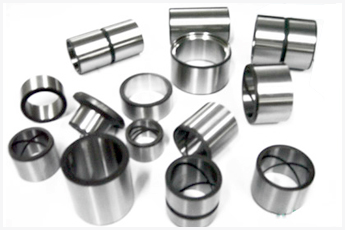

Hardened and Ground Bushes are high-performance mechanical components designed for critical applications requiring wear resistance, precision alignment, and extended life. These Bushes are manufactured from premium grade materials like EN8D (Medium Carbon Steel), EN19 (Alloy Steel), EN31 (High Carbon High Chromium Steel), 16MnCR5 (Case Hardening Steel), and 20MnCr5 (Case Hardening Steel), and are subjected to advanced Heat Treatment processes such as Through Hardening, Case Hardening, and Induction Hardening. Customizable in terms of dimensions and Grooving Types like Helix Angle, 8 Shaped, and Knurling, these Bushes offer outstanding durability, high load capacity, and dimensional stability. Their precision-ground surface ensures seamless assembly and optimal machine performance.
- Available in outer diameters from 10 mm to 300 mm and lengths up to 300 mm
- Made from high-grade MOC (Material Of Construction) including EN8D, EN19, EN31, 16MnCR5, and 20MnCr5
- Offered with Through Hardening, Case Hardening, and Induction Hardening processes
- Customizable Grooving Types including Helix Angle, 8 Shaped, and Knurling
- Superior surface finish and dimensional accuracy through precision grinding
- Case Depth options from 0.5 mm to 2.5 mm
- Hardness values tailored as per customers requirement
- Automotive Assemblies
- Hydraulic Systems
- Precision Machined Assemblies
- Textile Machinery Components
- Plastic Injection Moulding Machines
- Earthmoving Equipment
- Machine Tool Spares
- Jigs and Fixtures

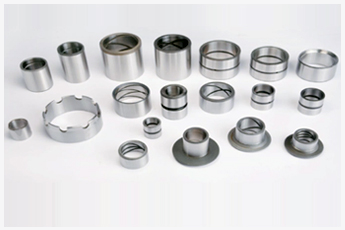

Hardened Bushes

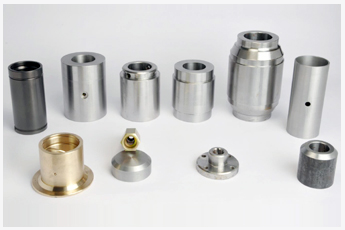

Soft Machined Bushes

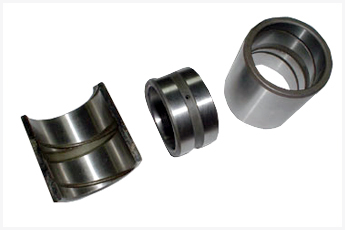

Hardened and Ground Bushes
Hardened and Ground Bushes
Hardened and Ground Bushes

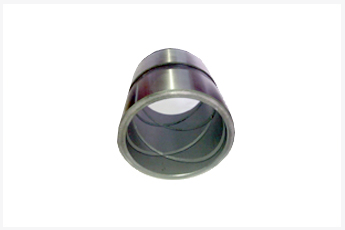

Molykote Coating Bushes
Specification |
Description |
|---|---|
Max. Outer Dia Ø |
300 mm |
Min. Outer Dia Ø |
10 mm |
Max Length |
300 mm |
Heat Treatment |
Through Hardening / Case Hardening / Induction Hardening |
Hardness |
As per customers requirement |
Case Depth |
0.5 to 2.5 mm |
Raw Material ( Preferred ) |
EN8D, EN19, EN31, 16MnCR5, 20MnCr5 or as per customers requirement |
Grooving Type |
Helix angle, 8 Shaped, Knurling or as per customers requirement |
